How to create a TM1 view using TI script (Basic)

Check list of all posts

Introduction

Data modification in TM1 is much more challenge than Data modification in relational database. The goal is to build a library to address data modification in TM1.  View creation is a very important build block to achieve such functionality, as View can be used as data source in TI process to load data, and View can be used to zero out data. This document is intended to start a approach to create a basic view with two dimensions and each dimension with one element.

Code

###

#paramters:

#pCube: Specifiy cube name

pCube ='SALES';

#pDim1: Specifiy first dimension name

pDim1='Product';

#pElement1: Specifiy element name for pDim1

pElement1='Product1';

#pDim2: Specifiy second dimension name

pDim2='Customers';

#pElement2: Specifiy element name for pDim2

pElement2='Customer 1';

#script:

sView = 'TEST';

sSubset = sView;

# Step 1: create View

If( ViewExists( pCube, sView ) = 1 );

 ViewDestroy( pCube, sView );

EndIf;

ViewCreate( pCube, sView );

# Step 2: create first subset

If( SubsetExists( pDim1, sSubset ) = 1 );

 SubsetDeleteAllElements( pDim2, sSubset );

Else;

 SubsetCreate( pDim1, sSubset );

EndIf;

SubsetElementInsert( pDim1, sSubset, pElement1, 1 );

# Step 3: Assigned the subset to view

ViewSubsetAssign( pCube, sView, pDim1, sSubset );

# Step 4: create second subset and assigned it to view if needed

If( SubsetExists( pDim2, sSubset ) = 1 );

 SubsetDeleteAllElements( pDim2, sSubset );

Else;

 SubsetCreate( pDim2, sSubset );

EndIf;

SubsetElementInsert( pDim2, sSubset, pElement2, 1 );

ViewSubsetAssign( pCube, sView, pDim2, sSubset );

# Step 5: set view parameters

ViewExtractSkipCalcsSet( pCube, sView, 1 );

ViewExtractSkipRuleValuesSet( pCube, sView, 1 );

ViewExtractSkipZeroesSet( pCube, sView, 1 );

Result

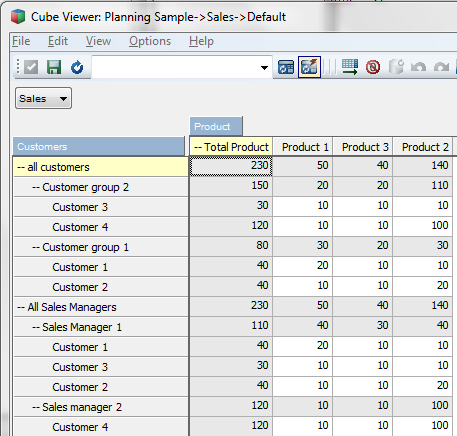

Cube

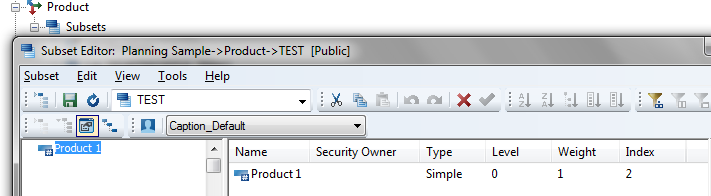

Subset1

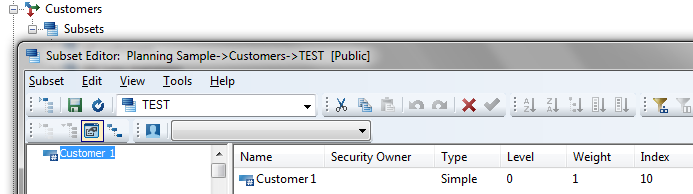

Subset2

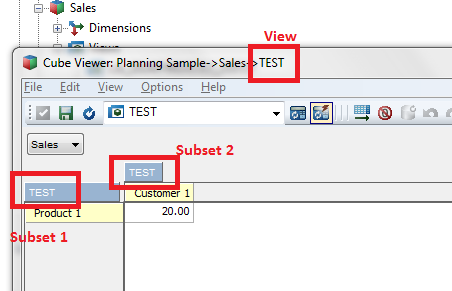

View
