In scorecard development, Year to Month data metrics is frequently used. The best way to archive such a metrics is to create a metrics source table to contain Year to Month data. It seems to be an easy task from business point of view; however, it can be a pretty challenge task. The main issue is that month data can be missed.
Given a sample below
Month data
| Month | Sales |
| Jan | $10 |
| Mar | $10 |
Year to Month data
| Month | Sales |
| Jan | $10 |
| Feb | $10 |
| Mar | $20 |
The key is that you need to provide data for the month, even when there is no sale. In case when data is not populated for metric table, user won’t see metric for that month, it is February in this case.

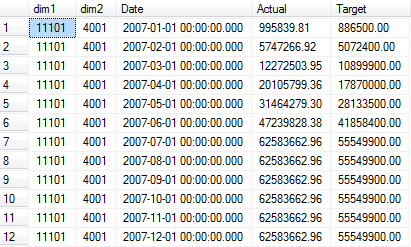

This document is intended to provide a practical solution using SQL statements. gosalesdw database in SQL server is used. Sure that you can use ETL to handle it as well, but it could be complicated process, especially when data volume is very big. You can download script for the review in detail, the goal is to generate metric source data as below
Implementation
Step 1: Create a master temp table to hold records. In order words, even there is not data for a specific month, year to month data should be available.
SELECT F.organization_key AS [Dim1],
F.employee_key AS [Dim2],
DT.[year] AS [Year],
DT.[month] AS [Month]
INTO #t_master_records
FROM (SELECT F.organization_key,
F.employee_key
FROM gosalesdw.sls_sales_fact F
INNER JOIN (SELECT DISTINCT [current_year] AS [year],
[current_month] AS [Month]
FROM gosalesdw.go_time_dim
WHERE [current_year] = 2007
AND [current_month] <> 0) DT
ON ( F.order_day_key / 10000 = DT.[year]
AND order_day_key / 100 - ( order_day_key / 10000 )
* 100 =
DT.[month] )
WHERE F.organization_key = 11101
AND F.employee_key = 4001
GROUP BY F.organization_key,
F.employee_key) F,
(SELECT DISTINCT [current_year] AS [year],
[current_month] AS [Month]
FROM gosalesdw.go_time_dim
WHERE [current_year] = 2007
AND [current_month] <> 0) DT
SELECT *
FROM #t_master_records
ORDER BY [month]
Step 2: Create an actual temp table to actual data for each month
SELECT F.organization_key AS [Dim1],
F.employee_key AS [Dim2],
F.order_day_key / 10000 AS [Year],
F.order_day_key / 100 - ( order_day_key / 10000 ) * 100 AS [Month],
Sum(F.sale_total) AS [Actual]
INTO #t_actual
FROM gosalesdw.sls_sales_fact F
INNER JOIN (SELECT DISTINCT [current_year] AS [year],
[current_month] AS [Month]
FROM gosalesdw.go_time_dim
WHERE [current_year] = 2007
AND [current_month] <> 0) DT
ON ( F.order_day_key / 10000 = DT.[year]
AND order_day_key / 100 - ( order_day_key / 10000 ) * 100 =
DT.[month] )
WHERE F.organization_key = 11101
AND F.employee_key = 4001
GROUP BY F.organization_key,
F.employee_key,
F.order_day_key / 10000,
F.order_day_key / 100 - ( order_day_key / 10000 ) * 100
SELECT *
FROM #t_actual
ORDER BY [month]
Step 3: Create a target temp table to target data for each month
SELECT F.organization_key AS [Dim1],
F.employee_key AS [Dim2],
F.month_key / 100 AS [Year],
F.month_key - ( month_key / 100 ) * 100 AS [Month],
Sum(F.sales_target) AS [Target]
INTO #t_target
FROM gosalesdw.sls_sales_targ_fact F
INNER JOIN (SELECT DISTINCT [current_year] AS [year],
[current_month] AS [Month]
FROM gosalesdw.go_time_dim
WHERE [current_year] = 2007
AND [current_month] <> 0) DT
ON ( F.month_key / 100 = DT.[year]
AND month_key - ( month_key / 100 ) * 100 = DT.[month] )
WHERE F.organization_key = 11101
AND F.employee_key = 4001
GROUP BY F.organization_key,
F.employee_key,
F.month_key / 100,
F.month_key - ( month_key / 100 ) * 100
SELECT *
FROM #t_target
ORDER BY [month]
Step 4: Get metrics data using mater table to join with both actual and target data, where Year to month actual and target data will be generated. Please note that date information has been change to date format so that metric calendar can be applied.
SELECT #t_master_records.[dim1],
#t_master_records.[dim2],
CONVERT(DATETIME, CONVERT(VARCHAR(4), #t_master_records.[year])
+ '-'
+ CONVERT(VARCHAR(2), #t_master_records.[month])
+ '-01') AS [Date],
Sum(#t_actual.actual) AS Actual,
Sum(#t_target.[target]) AS [Target]
FROM #t_master_records
LEFT JOIN #t_actual
ON ( #t_actual.[dim1] = #t_master_records.[dim1]
AND #t_actual.[dim2] = #t_master_records.[dim2]
AND #t_actual.[year] = #t_master_records.[year]
AND #t_actual.[month] <= #t_master_records.[month] )
LEFT JOIN #t_target
ON ( #t_target.[dim1] = #t_master_records.[dim1]
AND #t_target.[dim2] = #t_master_records.[dim2]
AND #t_target.[year] = #t_master_records.[year]
AND #t_target.[month] <= #t_master_records.[month] )
GROUP BY #t_master_records.[dim1],
#t_master_records.[dim2],
CONVERT(DATETIME, CONVERT(VARCHAR(4), #t_master_records.[year])
+ '-'
+ CONVERT(VARCHAR(2), #t_master_records.[month])
+ '-01'),
#t_master_records.[year],
#t_master_records.[month]
ORDER BY #t_master_records.[month]
